The VLX 138 Panoramic Sliding Door is a large-span aluminum slider built for one thing: uninterrupted glass. We’re talking panels up to 36 feet wide, gliding on stainless steel bearings so smooth you can move a 400-pound panel with two fingers. It’s the door homeowners in Woodland Hills choose when they want their living room to feel like it opens straight into the Santa Monica Mountains. Juniper Windows Woodland Hills is an authorized ViewLux installation partner, which means you get factory-backed product, installed to spec, with warranty protection intact. Call (831) 508-3441 to schedule a free measurement and quote in Woodland Hills.

Call (831) 508-3441

Product Overview – VLX 138 Panoramic Sliding Door

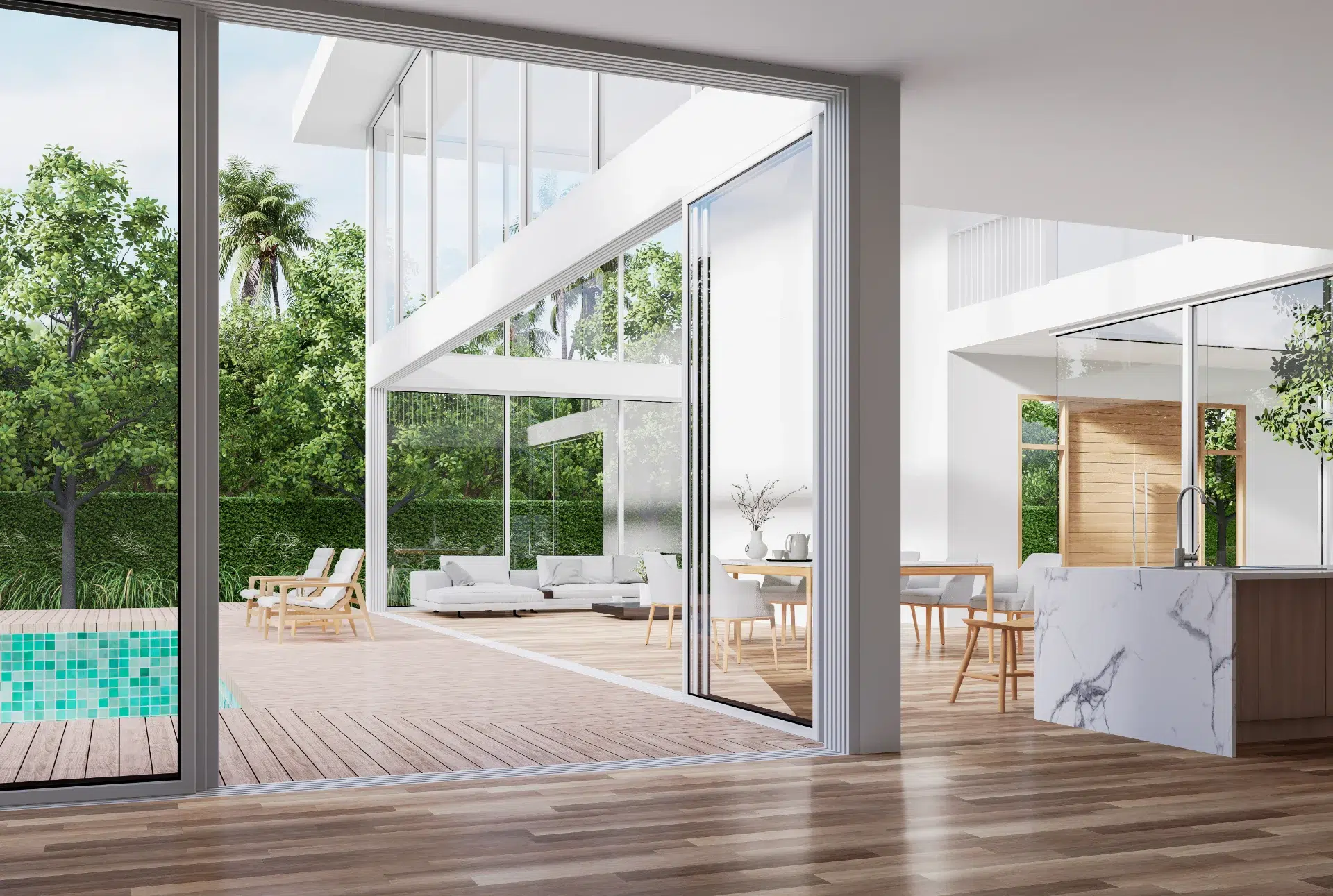

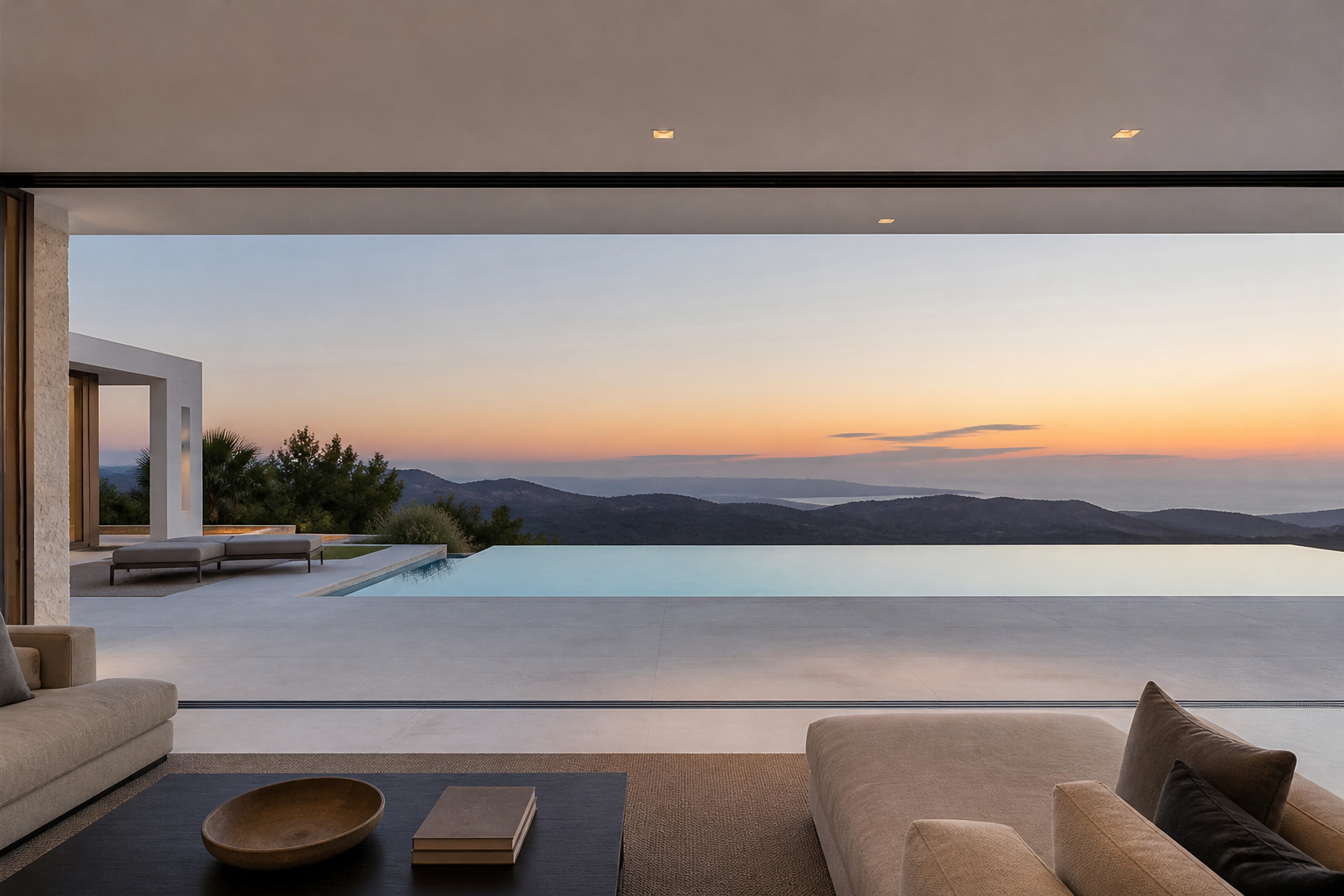

The VLX 138 exists for homes where the view does the heavy lifting. Picture a wall of glass that stacks away to a corner, leaving an opening that erases the line between your kitchen and the oak-dotted hillsides of Woodland Hills. That’s the design philosophy here: less frame, more glass, zero compromise on structural integrity.

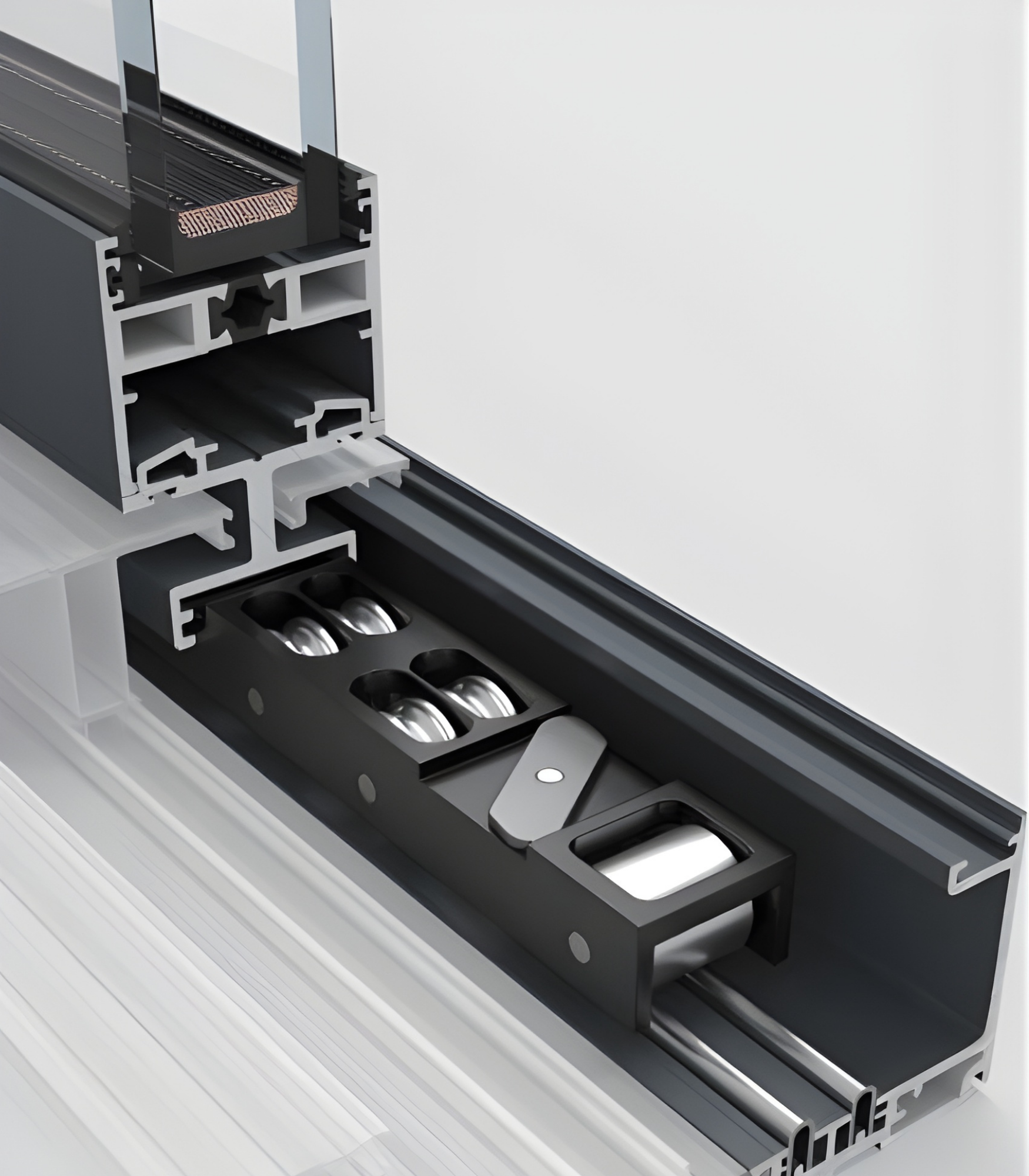

What makes this door different from the standard sliding patio door you’ll find at a big-box store comes down to engineering. The aluminum profiles are extruded to a 0.138-inch wall thickness, which gives the frame the torsional rigidity needed for spans that would make lesser doors sag within a few years. The panels ride on stainless steel bearing rollers, not plastic wheels, so the glide stays smooth after thousands of open-close cycles. The track itself is machined, not stamped, which means tighter tolerances and less wobble at full extension.

Architecturally, the VLX 138 works with modern box-style homes, mid-century ranches being updated across Woodland Hills, and contemporary additions where the goal is a seamless indoor-outdoor connection. It’s a favorite for great rooms, canyon-facing renovations, and any west-facing wall in Woodland Hills where you want to catch that golden-hour light through clean, minimal frame lines.

For homeowners in Woodland Hills, buying through Juniper Windows Woodland Hills means you’re not just getting a door. You’re getting a local team that measures, orders, installs, and services it. No third-party handoff. No finger-pointing if a panel needs adjustment. We’re the authorized ViewLux partner serving Woodland Hills, and we stand behind what we install. Call (831) 508-3441 to talk about your project.

Technical Specifications

Here’s what the VLX 138 brings to the table, measured and specified for real-world performance. These aren’t marketing numbers. They’re what we work with on every installation in Woodland Hills:

• Wall thickness: 0.138-inch extruded aluminum walls throughout the frame and panel profiles
• Profile width: 1.535 inches, keeping sightlines minimal while maintaining structural strength
• Maximum span: Up to 36 feet of total opening width, depending on track configuration and glass weight

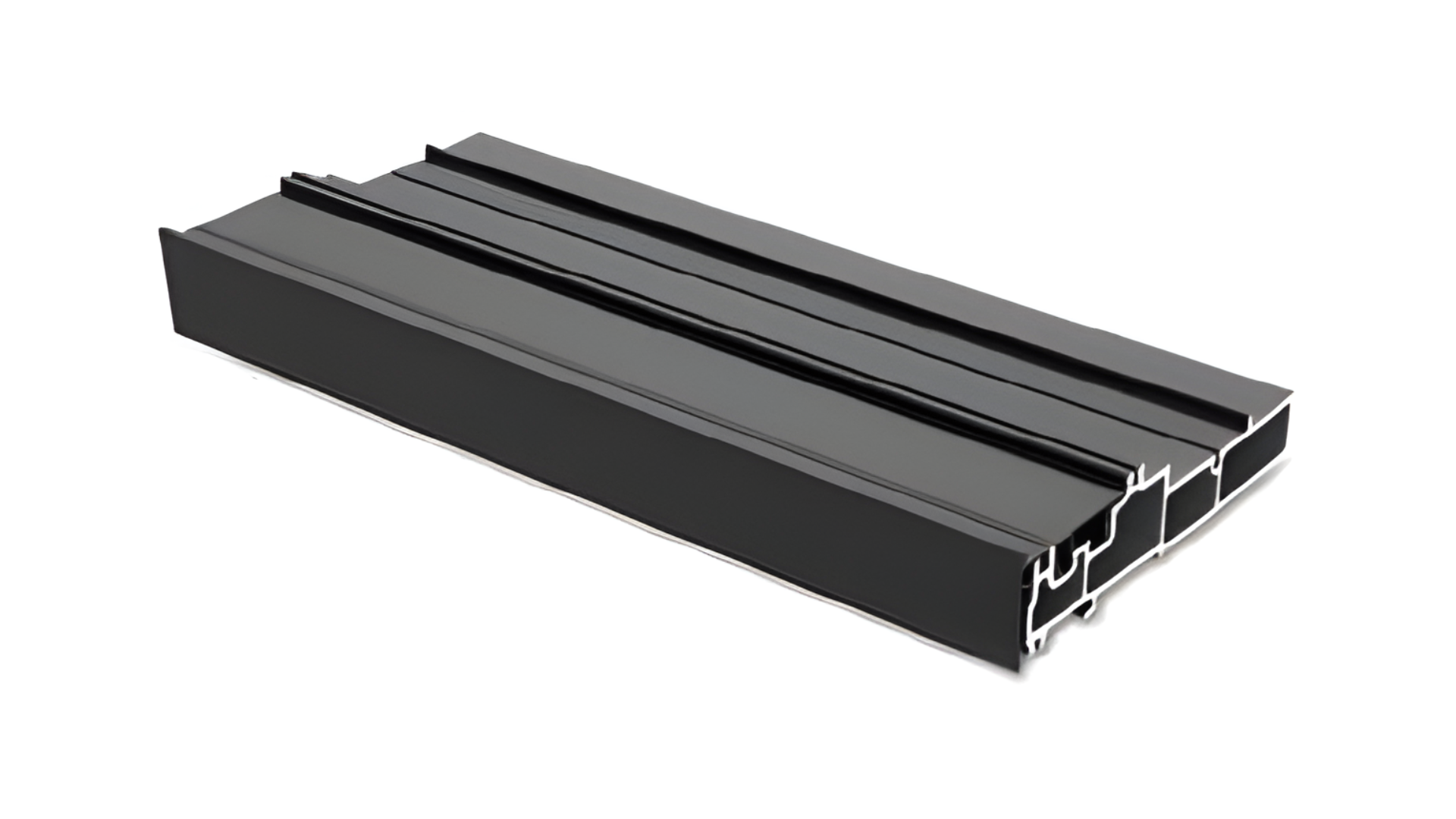

• Track configurations: 2-Track (two parallel rails, panels stack in one direction), 3-Track (three rails for wider openings), and 4-Track (maximum panel count, ideal for corner-stacking designs)
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint
• Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen (rolls into the frame when not in use) or Sliding Screen (glides on its own track)
• Sill options: Flush Sill (fully level with interior and exterior flooring), Low-Profile Sill (minimal rise, about a half-inch), Recessed Sill (drops into the floor for a completely flat threshold)
• Performance standards: NFRC-rated thermal performance, AAMA 2400/2410 compliant installation, AAMA 812 low-expansion foam sealant on perimeter joints

Every VLX 138 order is configured to the exact opening dimensions of your Woodland Hills home. We don’t sell off-the-rack sizes that leave you shimming gaps or trimming sheetrock. The door is ordered to fit, and we verify every measurement before and after fabrication. Call (831) 508-3441 with your rough opening dimensions for a ballpark quote.

Performance Features

Thermal Efficiency

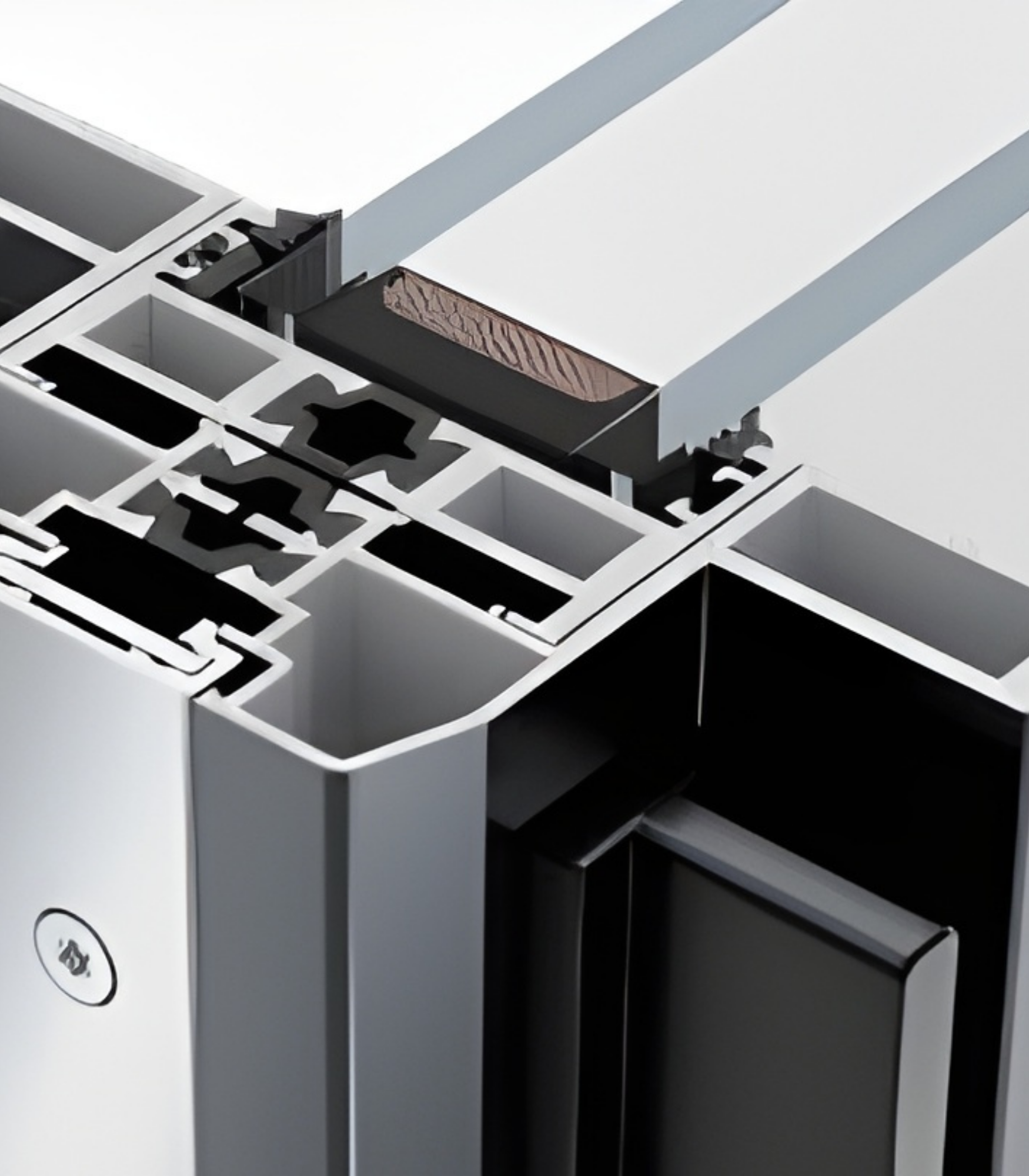

The VLX 138 uses thermal break technology to separate the interior and exterior aluminum faces, cutting heat transfer through the frame itself. This matters in Woodland Hills, where August afternoons regularly push past 95°F and you don’t want a door that acts as a radiator. NFRC-rated performance means the U-factor and SHGC numbers are independently tested, not estimated.

Acoustic Performance

Living near the 101 in Woodland Hills means traffic drone is a real thing. The VLX 138’s gasketed panel interlock and laminated glass option drop a meaningful number of decibels, calibrated to the specific glass package you choose. We hear from homeowners near Ventura Boulevard all the time: the sound difference after replacing an old aluminum slider is the first thing they notice.

Airtightness & Weather Seal

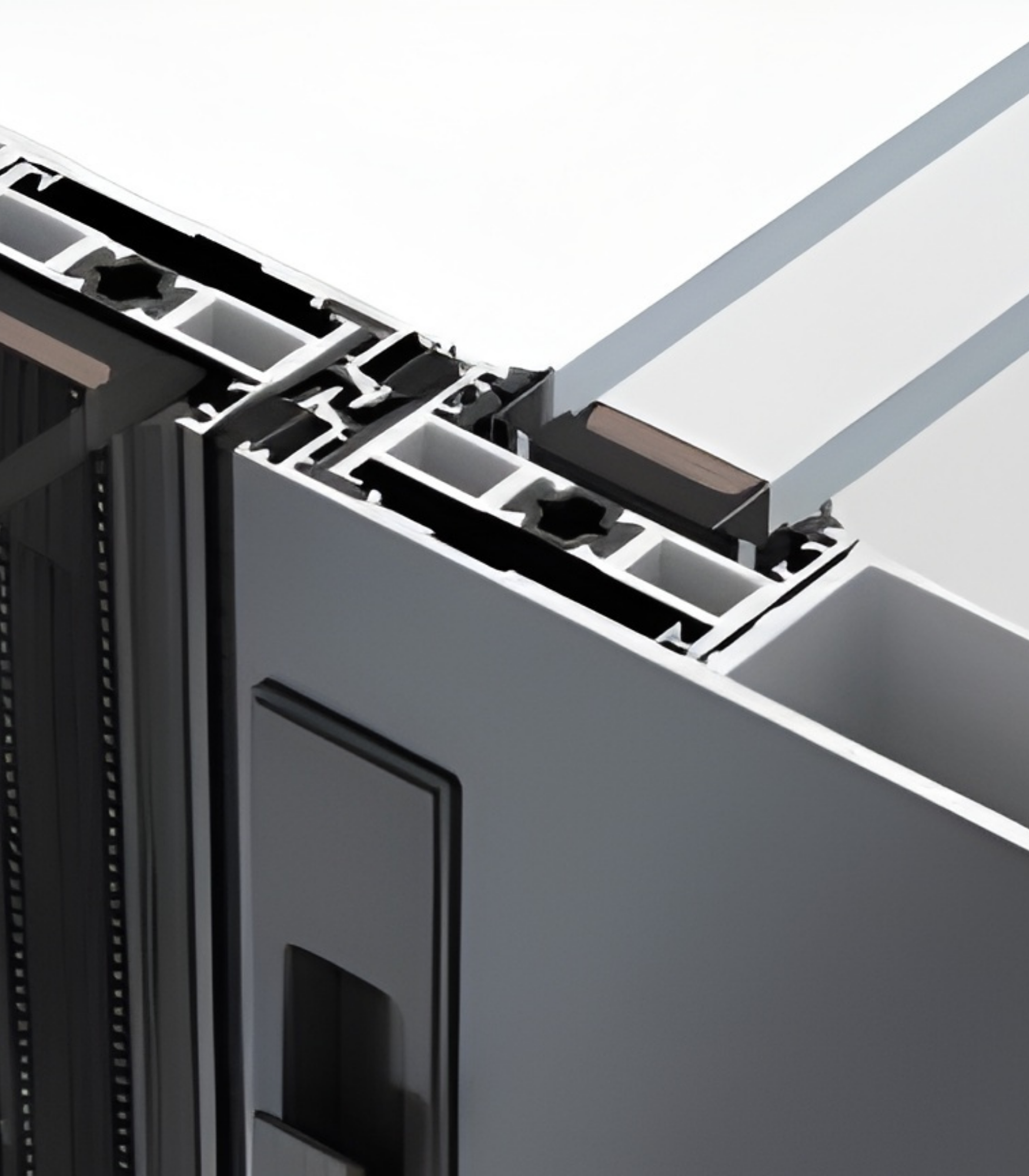

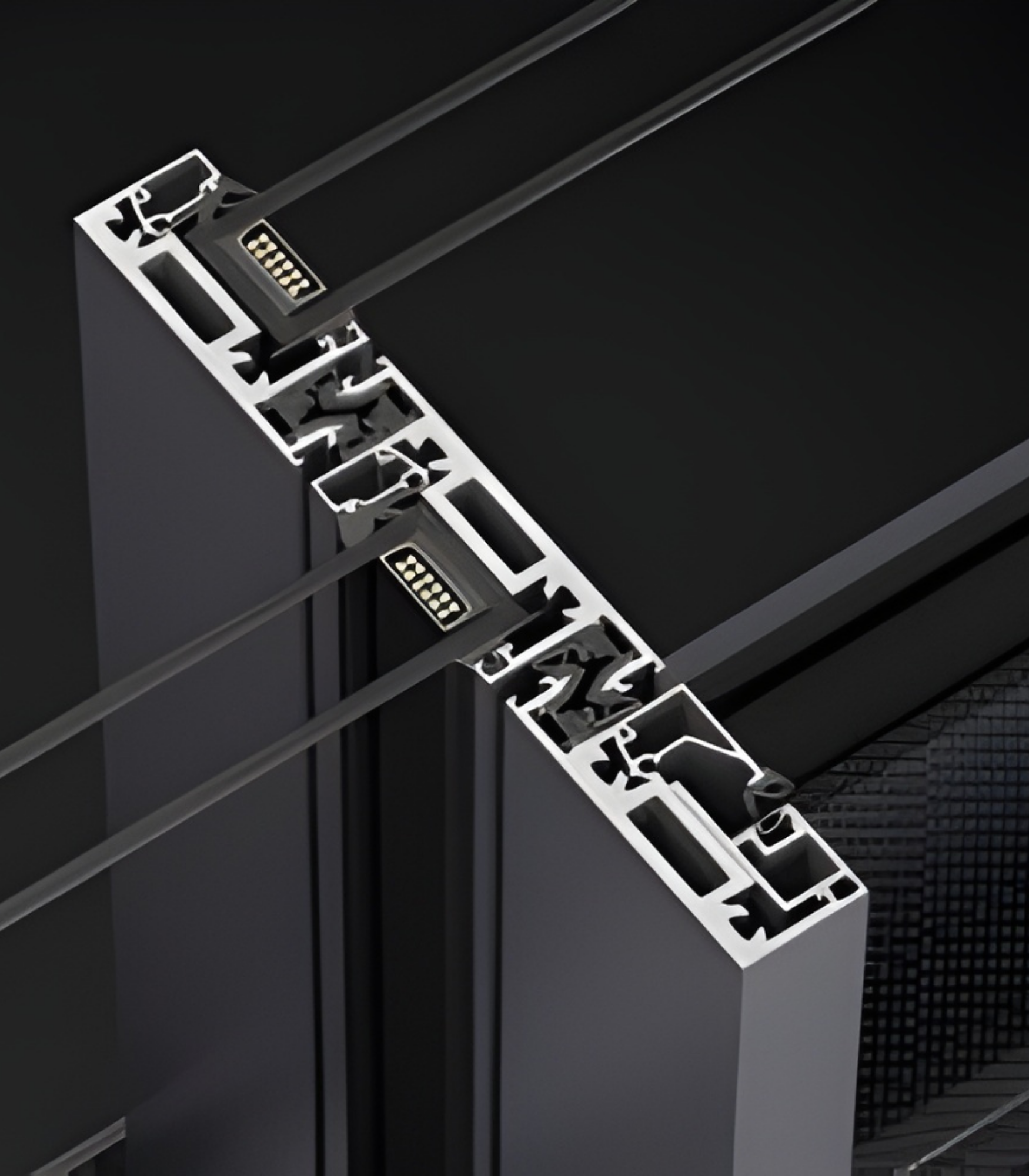

Air leakage is where cheap sliding doors fail quietly. The VLX 138 uses compression gaskets at every panel joint and meeting stile, plus a continuous weatherstripping run along the full perimeter. The result is a door that holds inside air inside, keeping your HVAC from fighting a losing battle during Woodland Hills’ hot, dry summers.

Waterproofing

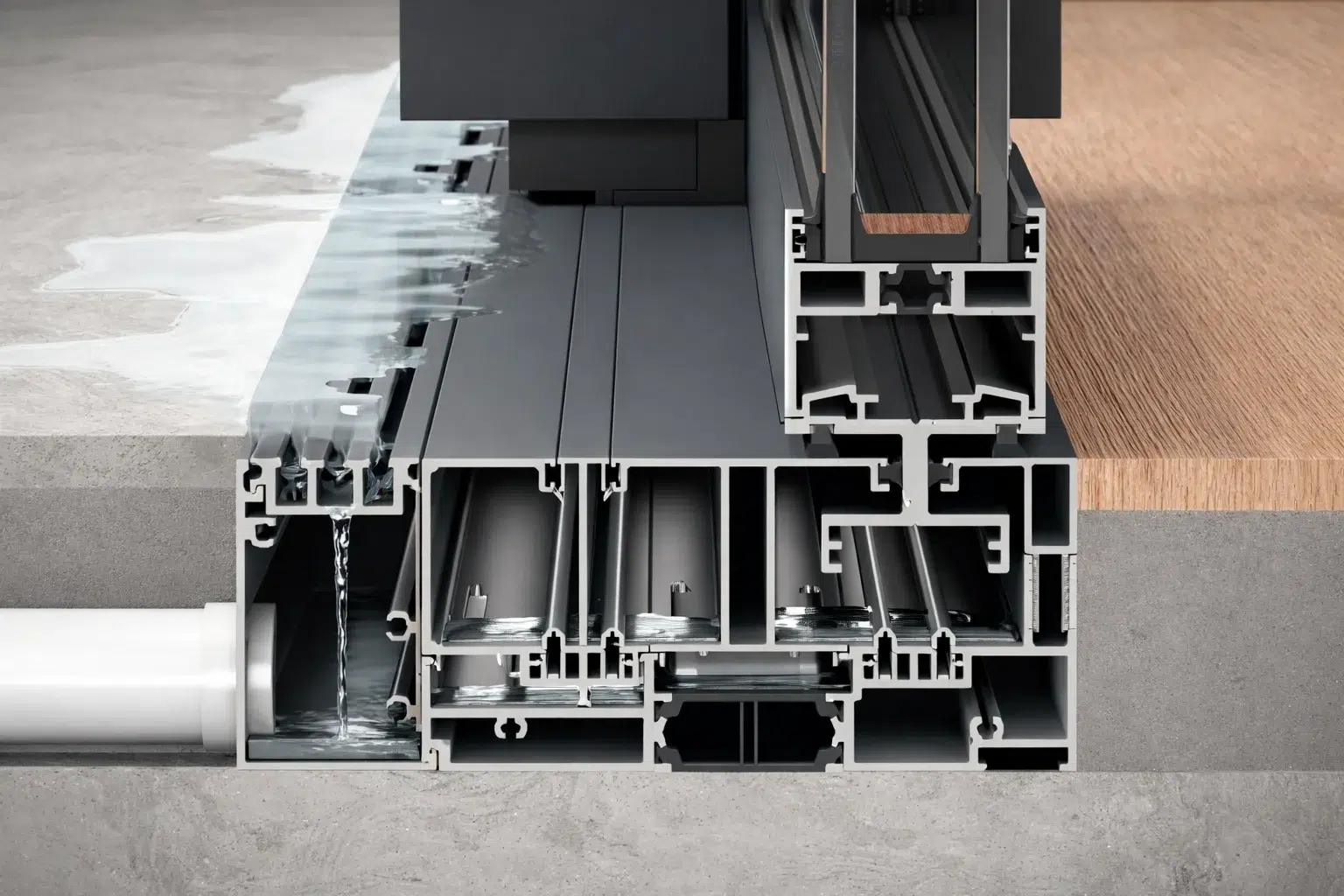

Woodland Hills gets most of its rain in a handful of winter storm events, which means when it rains, it pours. The VLX 138 has a dual-weep drainage system that channels water away from the interior, plus a raised outer track edge that keeps wind-driven rain from riding up and over. Installed with AAMA 812 low-expansion foam on all perimeter joints, it’s built to keep water where it belongs: outside.

Wind Resistance

Santa Ana winds in Woodland Hills can gust hard enough to strip patio furniture off decks. The VLX 138 is wind-load rated for the local climate requirements of the San Fernando Valley, using thick-wall extrusions and reinforced interlocks that hold panels steady in high gusts. You won’t hear rattling or feel panel flutter, even on the worst Santa Ana days.

Security & Hardware

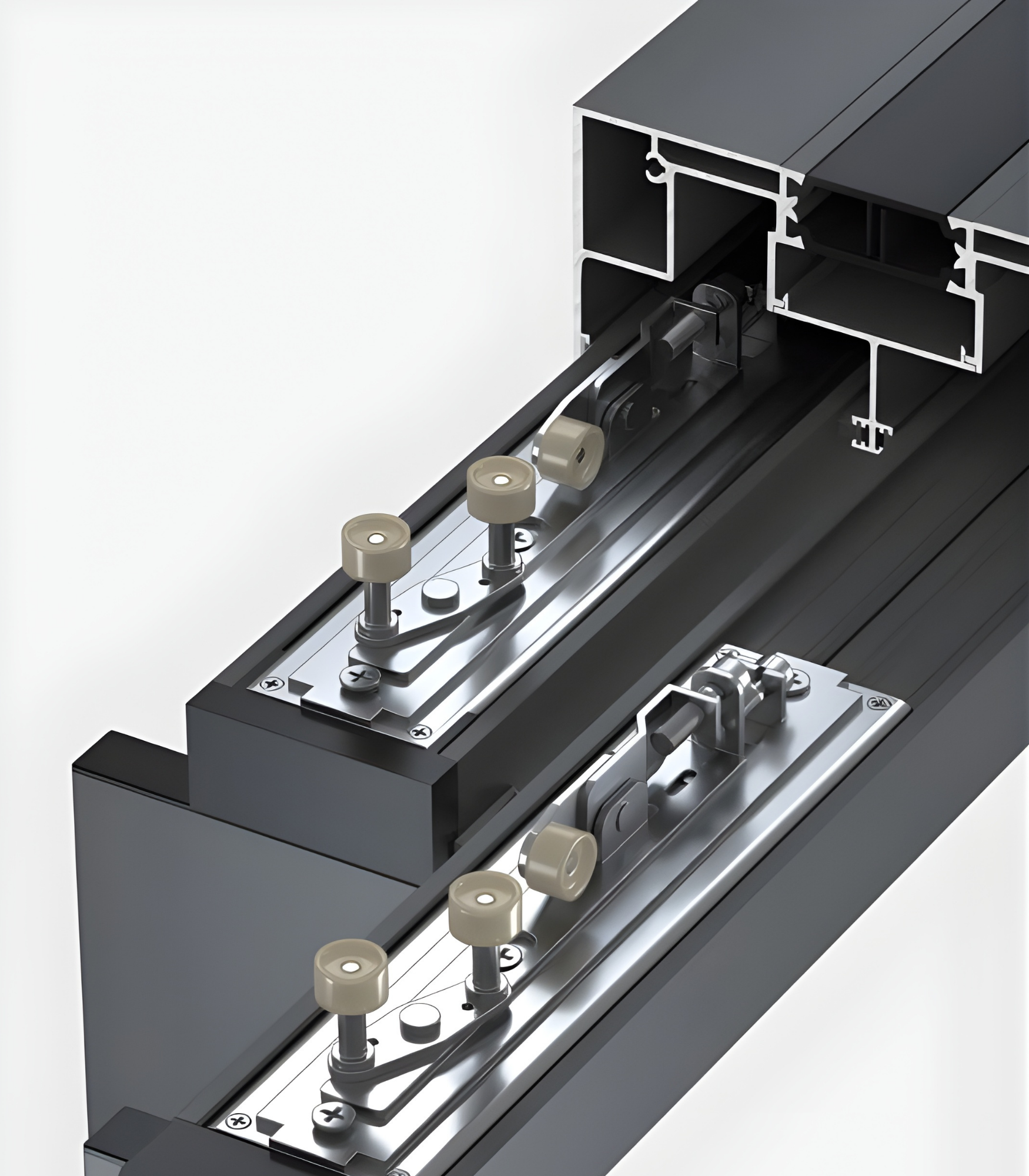

Panels this large need hardware that doesn’t play games. The VLX 138 uses multi-point locking hardware at the meeting stiles, plus stainless steel bearings that can’t be popped out of their track. For added protection, impact-resistant laminated glass is available as an upgrade, which is a smart call in Woodland Hills for anyone who wants both security and shatter resistance.

Color & Glass Options

The VLX 138 gives you real choices, not a “pick from two neutrals” situation. Premium Black is the current favorite in Woodland Hills for modern and transitional homes; it gives the door a shadow-line feel against lighter stucco. Pure White disappears into white-trimmed walls and bright interiors. Anodized Silver is the classic aluminum look, low-key and industrial without being stark. Bronze brings warmth and reads more traditional, pairing well with the newer farmhouse-inspired builds going up around Woodland Hills. Champagne is for when you want a metallic that’s softer than silver and richer than white, almost a warm pewter. Teak Wood is a wood-grain finish that gets you the look of timber without the maintenance, ideal for mid-century homes where original wood sliders have given up.

On the glass side: Clear is exactly what it sounds like, maximum visibility. Low-E adds a microscopic metallic coating that reflects heat, cutting cooling costs in Woodland Hills summers. Frosted and Obscure glass give you privacy without curtains, useful for street-facing walls or ground-floor bedrooms. Black Tint and Gray Tint reduce glare and solar heat gain before it ever hits the glass, which is worth considering if your opening faces west into the late-afternoon sun. Impact-resistant laminated glass is available as an upgrade for all glass types.

Installation by Juniper Windows Woodland Hills in Woodland Hills

A $25,000 door installed wrong is a $25,000 problem. That’s the blunt truth about panoramic sliders. The VLX 138 is a precision product, and the difference between a door that glides like it’s on ball bearings and one that binds after six months comes down to installation. Specifically, whether the installer set the track level, plumb, and perfectly square before a single panel was hung.

Our process at Juniper Windows Woodland Hills starts with a pre-install inspection. We check the opening dimensions against the order, verify the substrate is structurally sound, and identify any settling or framing issues before the door arrives. In Woodland Hills, with our clay-heavy soils and seasonal moisture swings, we pay close attention to slab condition under the track line. A cracked slab edge is a red flag we address before installation day, not after.

On install day, we set the perimeter track dead-level and anchored to the structural framing, not just the stucco. Every joint gets AAMA 812 low-expansion foam sealant, which expands to fill the gap without bowing the frame. We install to AAMA 2400/2410 standards, which cover proper anchoring, flashing, and integration with the building envelope. Then we hang the panels, adjust the rollers, and run a water test on the exterior to confirm drainage follows the weep system. You get a walkthrough on operation and maintenance, plus cleanup that leaves the job site looking like we were never there.

A critical point about warranty: ViewLux’s manufacturer warranty assumes professional installation. If a door is installed by a generalist who skips leveling or uses the wrong sealant, the warranty doesn’t cover the resulting failures. Juniper Windows Woodland Hills installs to the manufacturer’s exact specifications, so your warranty means something. We’ve been doing this in Woodland Hills and across the west San Fernando Valley long enough to know what sloppy work looks like, and none of it goes out with our name on it.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

Get a Quote – VLX 138 Panoramic Sliding Door in Woodland Hills

If you’re planning a remodel, a new build, or replacing a tired sliding door in Woodland Hills, let’s get you real numbers. We’ll measure your opening, walk you through glass and finish options, and give you a written, line-item quote with a fixed price, no change orders down the line. Call Juniper Windows Woodland Hills at (831) 508-3441 to schedule your free on-site measurement in Woodland Hills today.

Written by the team at Juniper Windows Woodland Hills, authorized ViewLux installation partner serving Woodland Hills, CA.
