VLX 80 Fixed / Picture Window in Woodland Hills, CA | Juniper Windows Woodland Hills

The VLX 80 Fixed / Picture Window is the product homeowners in Woodland Hills choose when they want an unobstructed view of the Santa Monica Mountains or a clean architectural statement on a modern remodel. It’s a non-operable window with a slim aluminum frame, designed to maximize glass area and disappear into the wall. Because we’re an authorized ViewLux installation partner, Juniper Windows Woodland Hills can supply, install, and warranty this window as a complete package, measured to your exact opening and installed to AAMA standards. Call (831) 508-3441 to schedule a free measurement and quote.

Call (831) 508-3441

Product Overview – VLX 80 Fixed / Picture Window

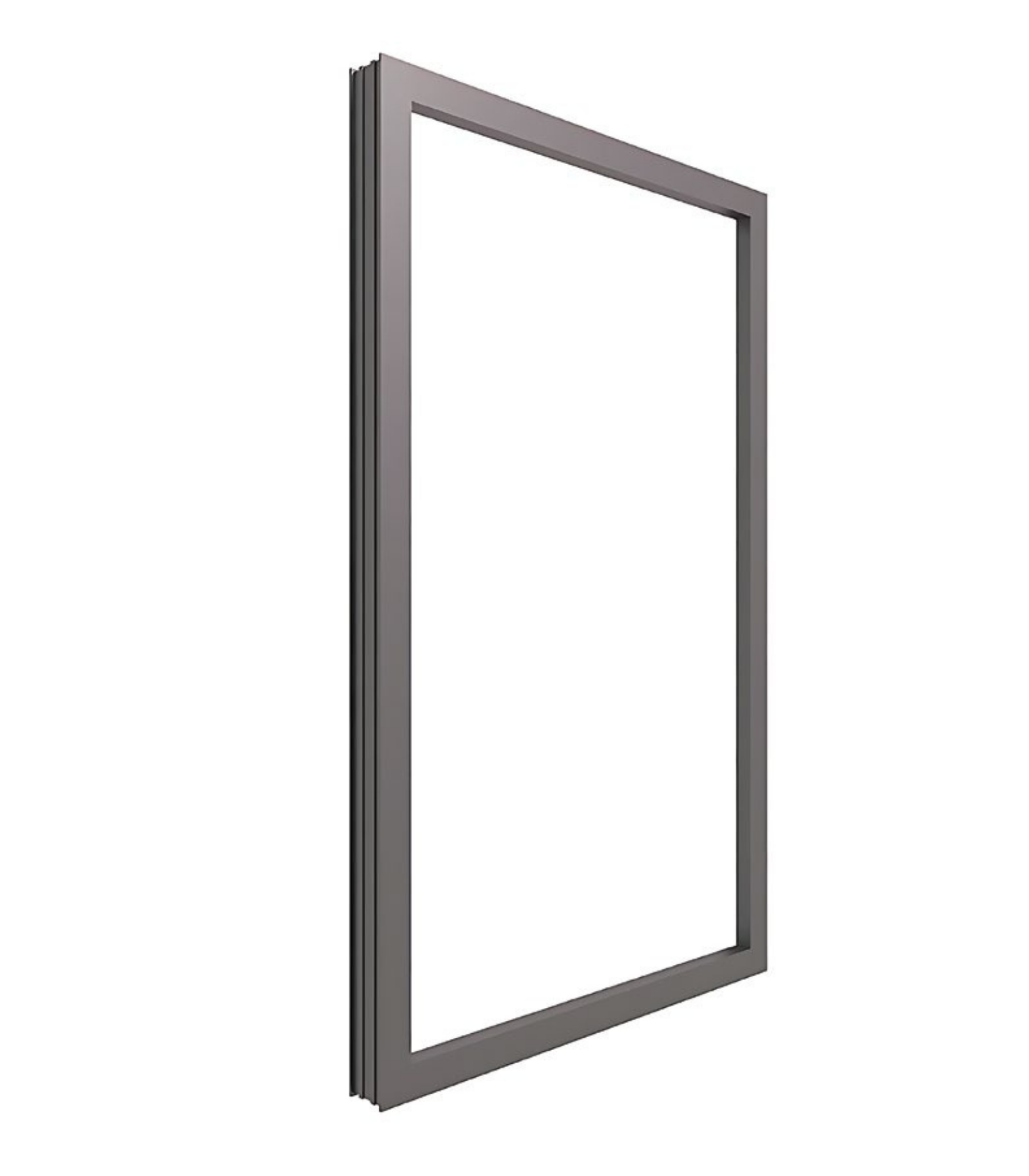

The design idea behind the VLX 80 is simple: more glass, less frame. This is a fixed unit, meaning it doesn’t open. What it does instead is give you a clean, uninterrupted plane of glass from sill to header. The frame width is just 1.97 inches, which is unusually slim for an aluminum window. Most of what you see from inside or outside is glass. There are no cranks, no locks, no hinges, no visible hardware of any kind. The window is held in place by a structural aluminum channel that’s engineered for spans up to 120 inches wide.

In Woodland Hills, we see this window specified most often for living rooms that face a backyard, for second-story gable ends, and for mid-century ranch homes where the original single-pane windows have finally reached the end of their life. Architects and designers like the VLX 80 because it reads as a pure glazed opening, not a “window with a frame.” It works equally well in new construction and in retrofit applications where the existing opening can accommodate a fixed unit.

The aluminum frame is built from extruded profiles with a wall thickness of 0.079 inches. That’s a substantial cross-section for an aluminum window, and it contributes to the window’s rigidity over large spans. The corners are mechanically joined and sealed, and the glazing channel accepts a range of glass packages from standard clear to impact-resistant laminated. Juniper Windows Woodland Hills orders each VLX 80 unit to your exact opening dimensions and specified glass makeup. There’s no cutting corners in the field to make a stock size fit.

Why do buyers pick the VLX 80 over other fixed windows? It comes down to the frame-to-glass ratio and long-term stability. Vinyl fixed windows at this width tend to bow or sag over time. Wood windows need repainting. Aluminum holds its line, and the VLX 80’s thermal break keeps the frame from conducting heat the way old aluminum windows did. If you’ve lived in Woodland Hills long enough, you remember those old single-pane aluminum sliders from the 1960s with condensation running down the inside on cold mornings. The VLX 80 is a different animal entirely.

To get a firm price for your project, call (831) 508-3441. We’ll bring glass samples and finish chips to your home in Woodland Hills so you can see them in your actual light.

Technical Specifications

Here’s what the VLX 80 Fixed / Picture Window is made of, in plain terms. These are the numbers that matter when you’re comparing it against other fixed windows on the market.

• Frame material: Extruded aluminum with a thermal break
• Profile width (visible frame): 1.97 inches
• Frame wall thickness: 0.079 inches
• Maximum span (width): 120 inches
• Operation: Fixed / non-operable (does not open)
• Hardware: None visible; hidden fixing clips and structural glazing beads
• Glass types: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Sealant system: AAMA 812 compliant low-expansion foam on all perimeter joints
• Installation standard: AAMA 2400/2410
• Energy rating framework: NFRC-rated performance via thermal break glazing system

Performance Features

Aluminum windows got a bad reputation decades ago because they conducted heat and collected condensation. The VLX 80 fixes that with modern engineering. Here’s how it performs across the six areas that matter in Woodland Hills.

Thermal Efficiency

The frame is built with a thermal break, a non-conductive barrier separating the interior and exterior aluminum profiles. This stops heat from moving through the metal. Combined with Low-E glass, the VLX 80 carries NFRC-rated energy performance numbers that make it suitable for Title 24 compliance in Woodland Hills. Winter mornings stay warmer; summer afternoons stay cooler.

Acoustic Performance

If your home sits near the 101 corridor or under the flight path into Van Nuys Airport, you know what road and aircraft noise does to a living room. Laminated glass in the VLX 80 cuts sound transmission significantly. The airtight seal around the fixed sash means no gaps for noise to leak through. We can spec different glass thicknesses to target specific noise ranges.

Airtightness & Weather Seal

Because this window never opens, the entire perimeter can be sealed as a continuous plane. There are no operable sashes to develop air leaks over time. The glazing channel uses a compression seal, and the frame-to-wall junction gets AAMA 812 low-expansion foam on every joint. No drafts, no whistling wind.

Waterproofing

Water moves downhill and finds holes. A fixed window only has two places water can enter: the glass-to-frame glazing line and the frame-to-wall junction. The VLX 80 uses a sill design that drains any incidental moisture to the exterior and relies on the perimeter foam plus a compatible exterior sealant to keep bulk water out. Installed to AAMA 2400/2410, the rough opening gets sill flashing and jamb flashing before the window ever goes in.

Wind Resistance

Woodland Hills sees strong afternoon winds coming through the canyons, especially in fall during Santa Ana season. The VLX 80 is wind-load rated for our local climate requirements. The 0.079-inch frame wall thickness and the structural aluminum extrusions resist deflection even on wide spans. Large picture windows that face the canyon ridges hold steady when the gusts hit.

Security & Hardware

A fixed window is inherently more secure than an operable one because there’s no latch to defeat. But the real security upgrade is laminated glass, which we recommend for ground-floor installations and for homes in Woodland Hills that sit on hillside lots with private rear elevations. Laminated glass holds together even when struck, and it also provides the impact resistance required in certain wind-borne debris zones.

Color & Glass Options

The VLX 80 comes in six finishes. Premium Black is the choice for modern farmhouse and contemporary homes throughout Woodland Hills – it creates a sharp contrast against white stucco and light interior walls. Pure White works on traditional homes where the window should blend into the trim. Anodized Silver is the classic aluminum look, most at home on mid-century and industrial designs. Bronze suits warm exteriors like brick, wood siding, and tan stucco. Champagne is a softer metallic tone that works well on Mediterranean and Spanish-style homes south of Ventura Boulevard. Teak Wood is a specialty finish with a wood-grain texture for buyers who want the look of timber without the maintenance.

On the glass side, Clear is the default. Low-E adds a microscopic coating that reflects heat. Frosted gives privacy without blocking light, often used on side elevations facing neighbors. Tempered glass is safety glass, required by code in specific locations like windows near doors or low to the floor. Laminated adds impact resistance and noise reduction. Gray Tint and Black Tint cut solar gain and add a sleek exterior appearance. Many Woodland Hills buyers combine Low-E with a light tint for afternoon west-facing exposure.

Installation by Juniper Windows Woodland Hills in Woodland Hills

A picture window is only as good as the installation around it. The glass could be flawless and the frame perfectly square, but if the rough opening isn’t flashed correctly, water will find its way in. If the unit isn’t set level and plumb, the glass sits under constant stress and can crack. If the perimeter isn’t sealed with the right foam, air will move around the frame and the energy performance goes out the window. This is why Juniper Windows Woodland Hills installs every VLX 80 to AAMA 2400/2410, the recognized standard for window installation in the U.S.

Our process starts before the window is even ordered. We measure the existing opening carefully and check the framing condition around it. In older Woodland Hills homes, we regularly find rotted sill plates, termite damage, or studs that have moved out of plane over forty or fifty years of settling. Those issues get addressed before the new window goes in. If we simply trimmed around rotted wood, the new window would fail early and the manufacturer warranty would be void.

On installation day, the old window comes out. The rough opening gets inspected and repaired if needed. Sill flashing goes on first, then jamb flashing. The VLX 80 is set into the opening and shimmed exactly level, plumb, and square. We check diagonal dimensions to make sure the frame isn’t racked. Once the window is fixed in place, the entire perimeter receives AAMA 812 compliant low-expansion foam. This foam seals the frame-to-wall junction without distorting the aluminum. Exterior sealant follows, tooled smooth and compatible with the finish.

After installation, we run a water test on the exterior junction to confirm there are no leaks. The interior gets cleaned, old materials get hauled away, and we walk the job with you. The result is a fixed window that’s airtight, watertight, and covered under both the ViewLux product warranty and our own workmanship warranty. In Woodland Hills, where summer temperatures hit the high 90s and winter nights dip into the low 40s, that seal integrity is what keeps your home comfortable year-round.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in Woodland Hills

If you’re ready to see what your Woodland Hills home looks like with a VLX 80 Fixed / Picture Window, we’ll bring the sample kit to you. No pressure, no deposit required. We measure, spec, and price the job so you know exactly what it costs. Call (831) 508-3441 to schedule your free on-site measurement and get a written quote.

Written by the team at Juniper Windows Woodland Hills, authorized ViewLux installation partner serving Woodland Hills, CA.
