The VLX 80 Casement Window is a side-hinged aluminum window built around two things most Woodland Hills homeowners ask us for: the widest possible glass area and a frame that won’t warp, sag, or swell in our hot, dry summers. It’s a favorite for kitchens over sinks, bedrooms facing the street, and any wall where you want maximum airflow without a center post breaking the view. As an authorized ViewLux installation partner, Juniper Windows Woodland Hills supplies and installs this series to factory spec, so your warranty stays intact and the window performs exactly as rated. Call (831) 508-3441 for current VLX 80 pricing and a free project estimate.

Call (831) 508-3441

Product Overview – VLX 80 Casement Window

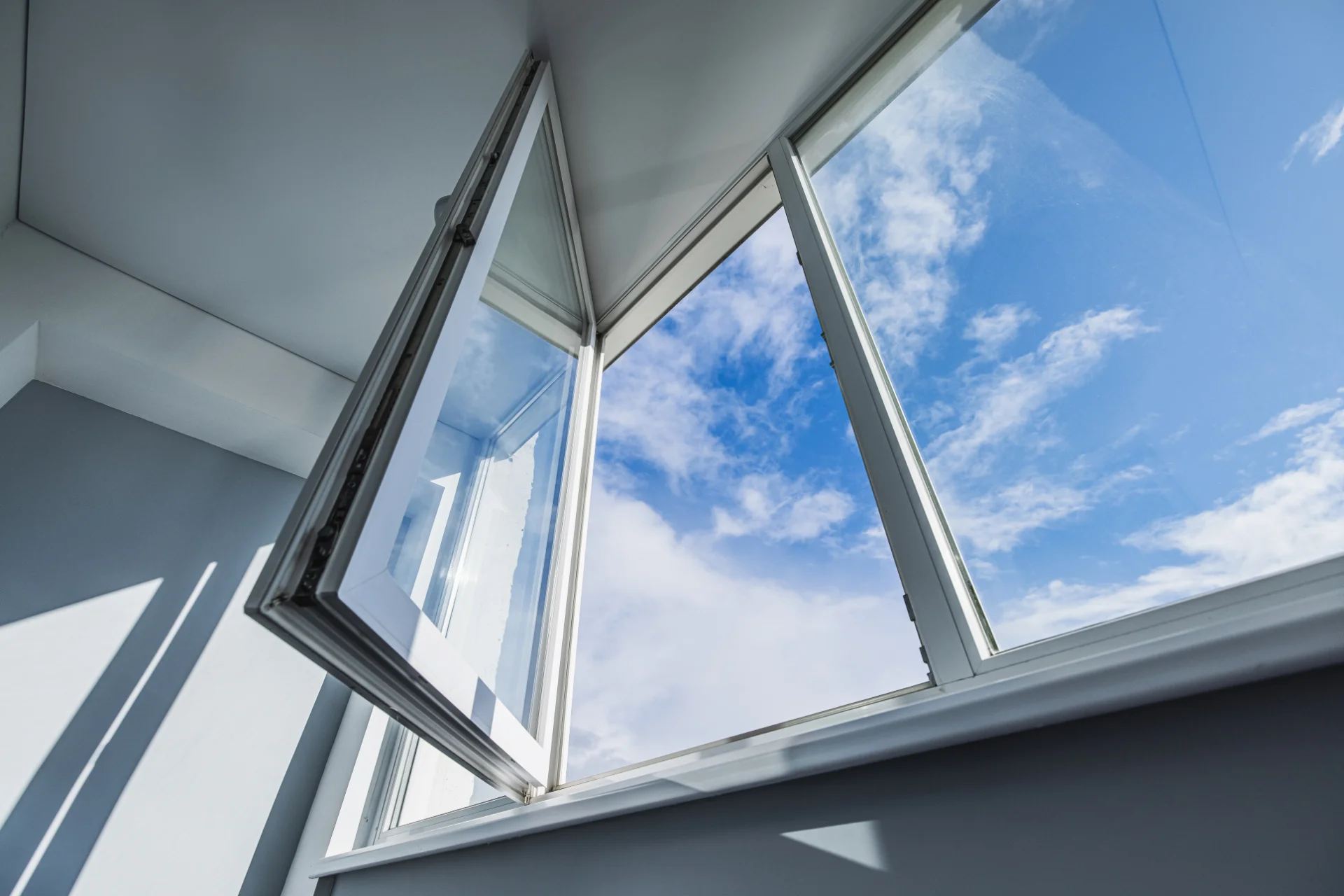

The VLX 80 earns its place in the lineup through subtraction. ViewLux engineered the frame to disappear, leaving more glass and less aluminum in the opening. A casement window hinges at the side and swings outward with a crank, which means the full opening vents when the sash is open. Unlike a sliding window, you get the entire width working for airflow, not just half. In Woodland Hills, where afternoon heat builds against west-facing walls, that full-opening ventilation is the difference between reaching for the thermostat and leaving it alone.

Structurally, the VLX 80 uses an aluminum profile measuring 1.97 inches wide. That’s narrow enough to read as a clean, modern line against stucco or smooth-coat drywall, yet deep enough to carry the thermal break and multi-point hardware without flexing. Aluminum as a material handles the San Fernando Valley climate well. It does not absorb moisture, it keeps its shape through temperature swings from 40°F winter mornings to 105°F August afternoons, and it won’t rot or attract termites, which matters in a region where wood windows are a maintenance liability.

We spec this series most often for mid-century ranch homes in Woodland Hills, contemporary remodels south of Ventura Boulevard, and any project where the homeowner wants a window that looks structural and intentional rather than decorative. The crank operation also makes it practical over counters and furniture, where reaching a sliding sash would be awkward.

Technical Specifications

• Frame material: Extruded aluminum with thermal break, wall thickness 0.079 inches.
• Profile width: 1.97 inches, slim-line sash and frame for maximum glass area.

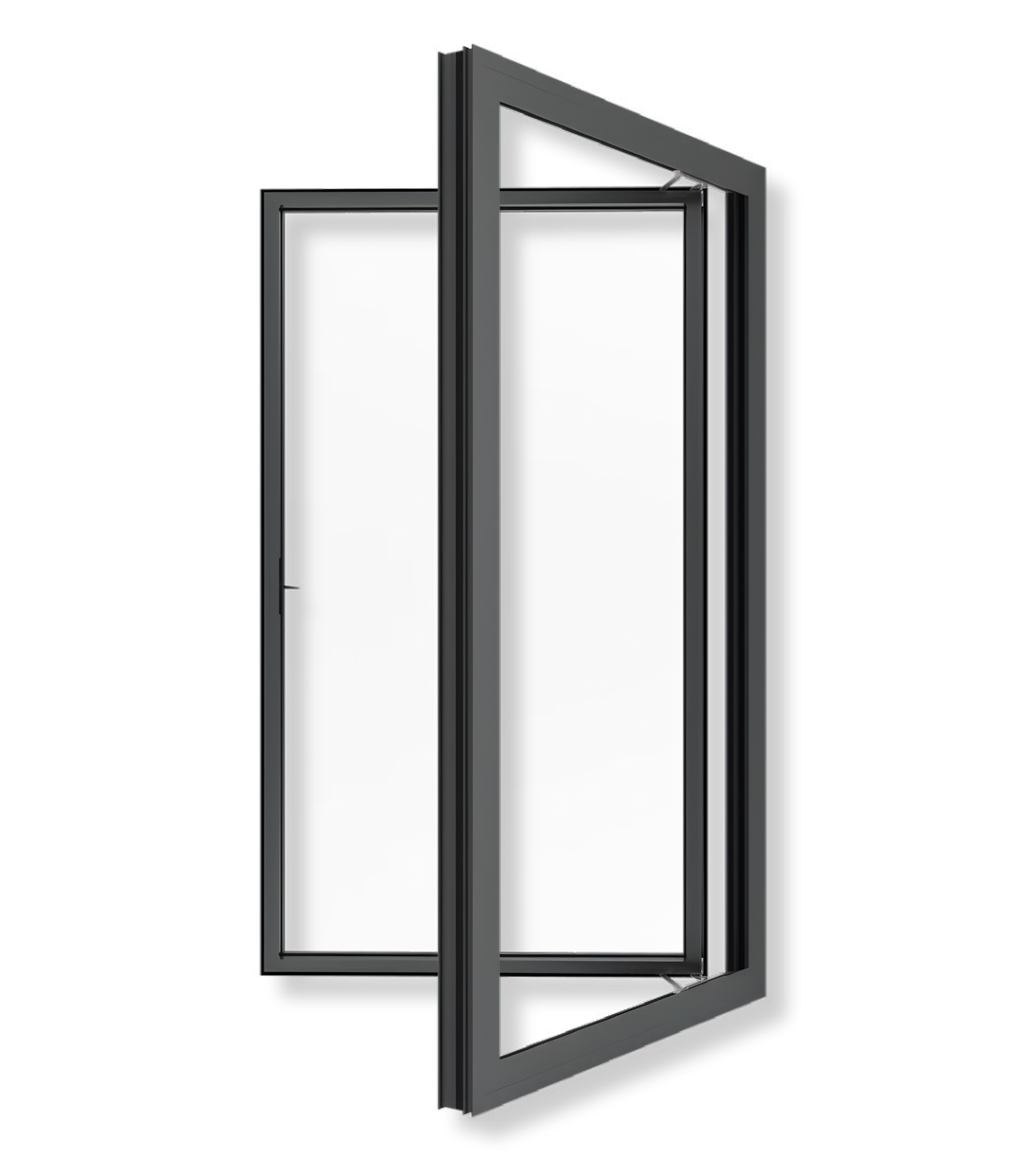

• Operation: Side-hinged casement with smooth crank hardware, opens to full width.
• Sill options: Standard Sill and Low-Profile Sill. Low-profile is popular in Woodland Hills for door-adjacent windows and contemporary designs where a minimal bottom rail is wanted.

Glass Options

• Clear: Maximum light transmission, the default choice for north-facing or shaded walls.
• Frosted: Obscures visibility, commonly ordered for bathrooms or a window facing a close property line.
• Low-E: Coated glass that reflects radiant heat, the standard recommendation for almost every Woodland Hills install.
• Tempered: Heat-treated safety glass, required by code in certain locations like doors, low sills, and windows near stairways.
• Laminated: Two glass layers bonded with an interlayer, holds together if broken, cuts sound, adds impact resistance.

Finish Options

• Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. Six finishes covering the full range from stark modern to warm wood-look without a wood frame’s upkeep.

Performance Features

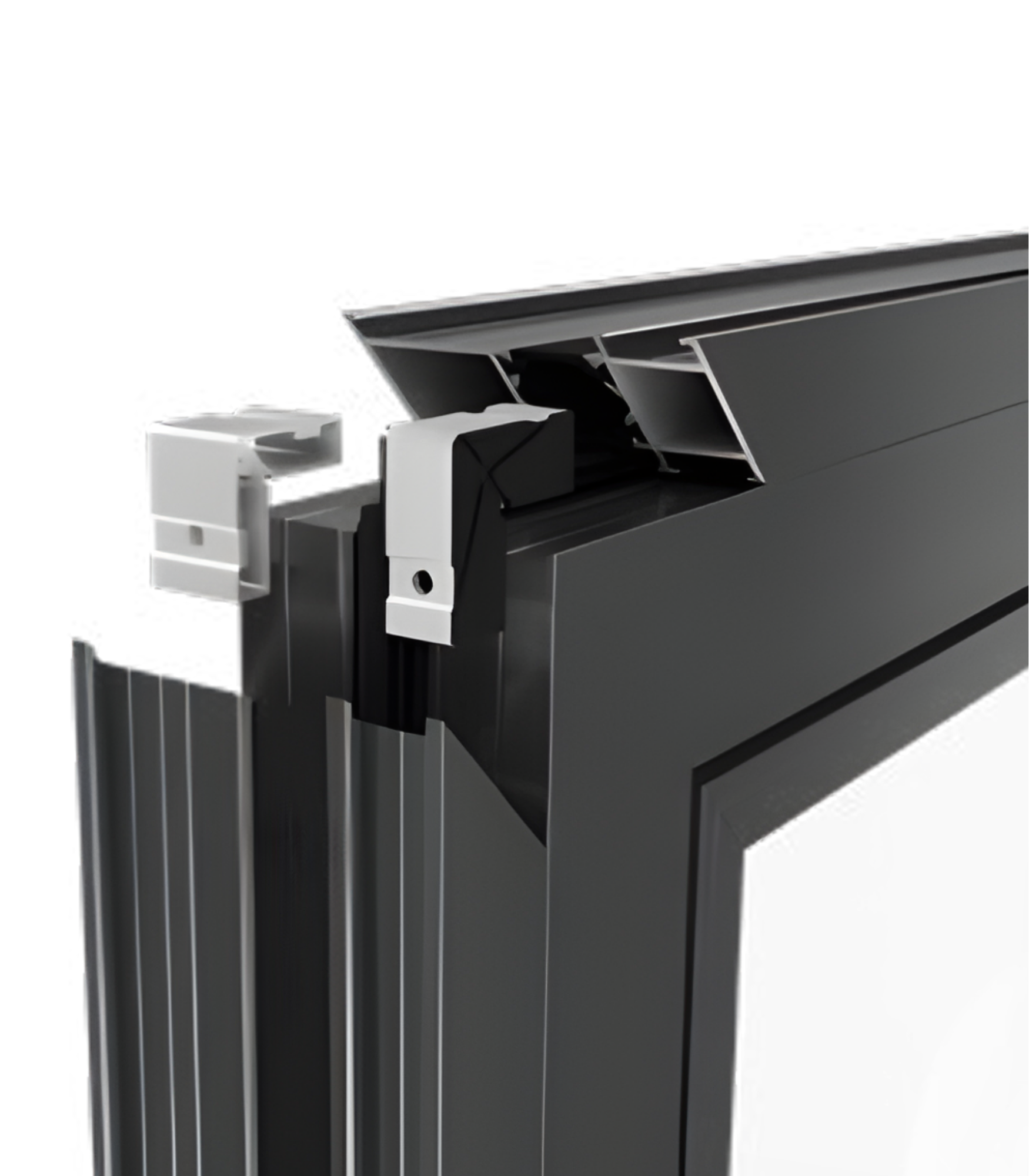

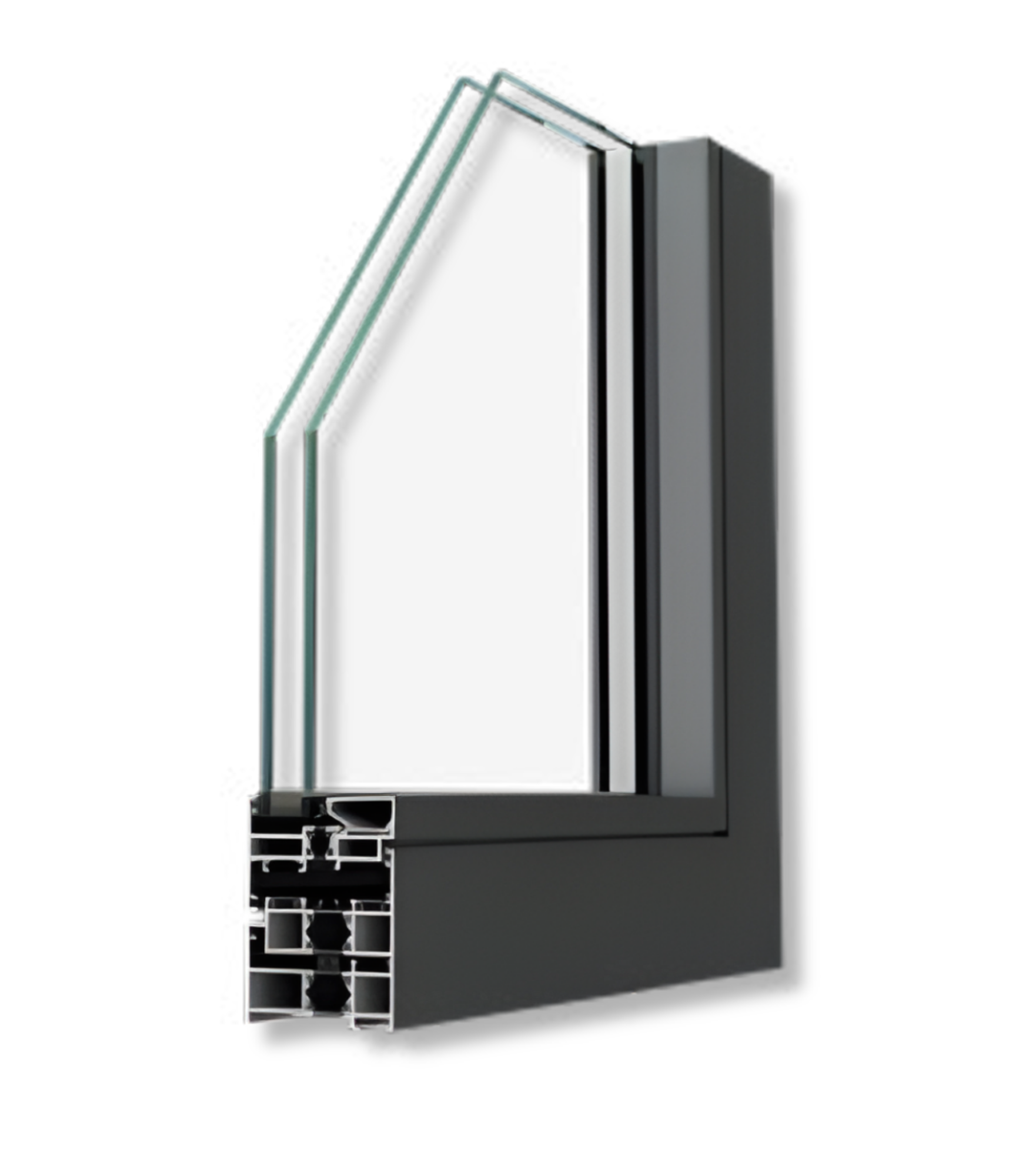

Thermal Efficiency – The VLX 80 carries a true thermal break: the inner and outer aluminum halves are separated by a non-conductive barrier, so heat doesn’t march straight through the frame. NFRC-rated energy performance covers the full assembly, glass and frame together, not just the glass in isolation. In Woodland Hills, that rating translates to less heat gain through west and south facing openings during the hottest months.

Acoustic Performance – If you live within earshot of the 101, Topanga Canyon Boulevard, or Victory traffic, sound control matters more than most window salespeople admit. Laminated glass in the VLX 80 cuts mid-range noise noticeably, and the casement design compresses the weather seal tightly on close, which adds another layer of sound reduction compared to sliders.

Airtightness & Weather Seal – Casement windows outperform sliders on air tightness by design. When the crank closes, the sash pulls itself against the perimeter gaskets with mechanical pressure. That means less dust penetration during Santa Ana wind events and fewer drafts in winter months when Valley mornings drop into the low 40s.

Waterproofing – The drainage path is built into the sill and frame extrusions, moving water away from the interior even under driving rain. What matters equally is the installation: every VLX 80 we set in Woodland Hills gets AAMA 812 low-expansion foam sealant on all perimeter joints, so the waterproofing shown in the lab holds up in the field.

Wind Resistance – The VLX 80 is wind-load rated for local climate requirements, including the gust conditions common on Woodland Hills ridgelines and canyon mouths. The multi-point locking hardware and deeper frame section keep the sash stable when wind pushes against a large pane of glass.

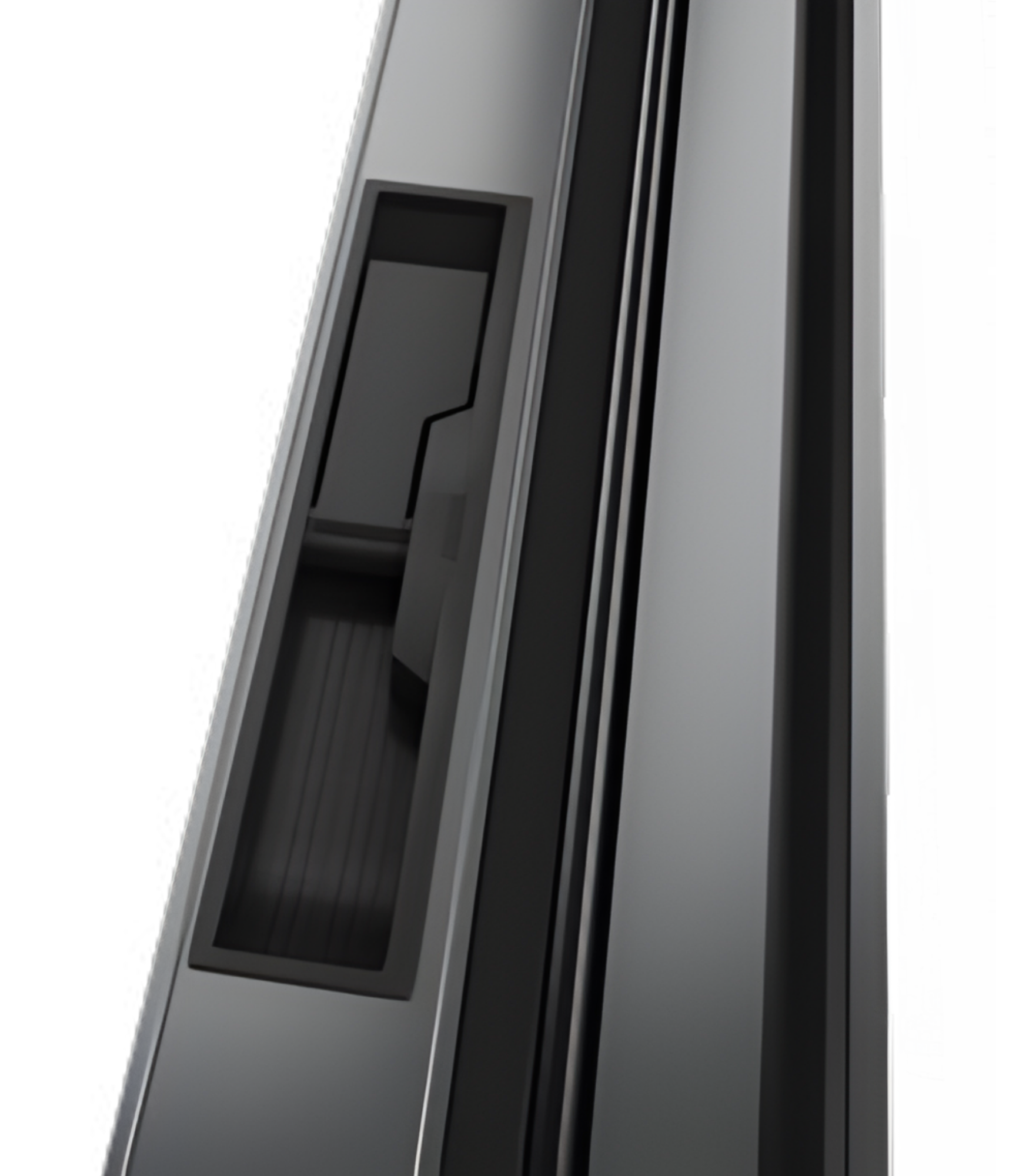

Security & Hardware – Multi-point locks engage at several points along the sash, not just one latch in the middle. That makes the window substantially harder to pry open than a single-latch slider. The crank mechanism means the window cannot be opened from outside by lifting the sash. For added protection, laminated and impact-resistant glass options are available.

Color & Glass Options

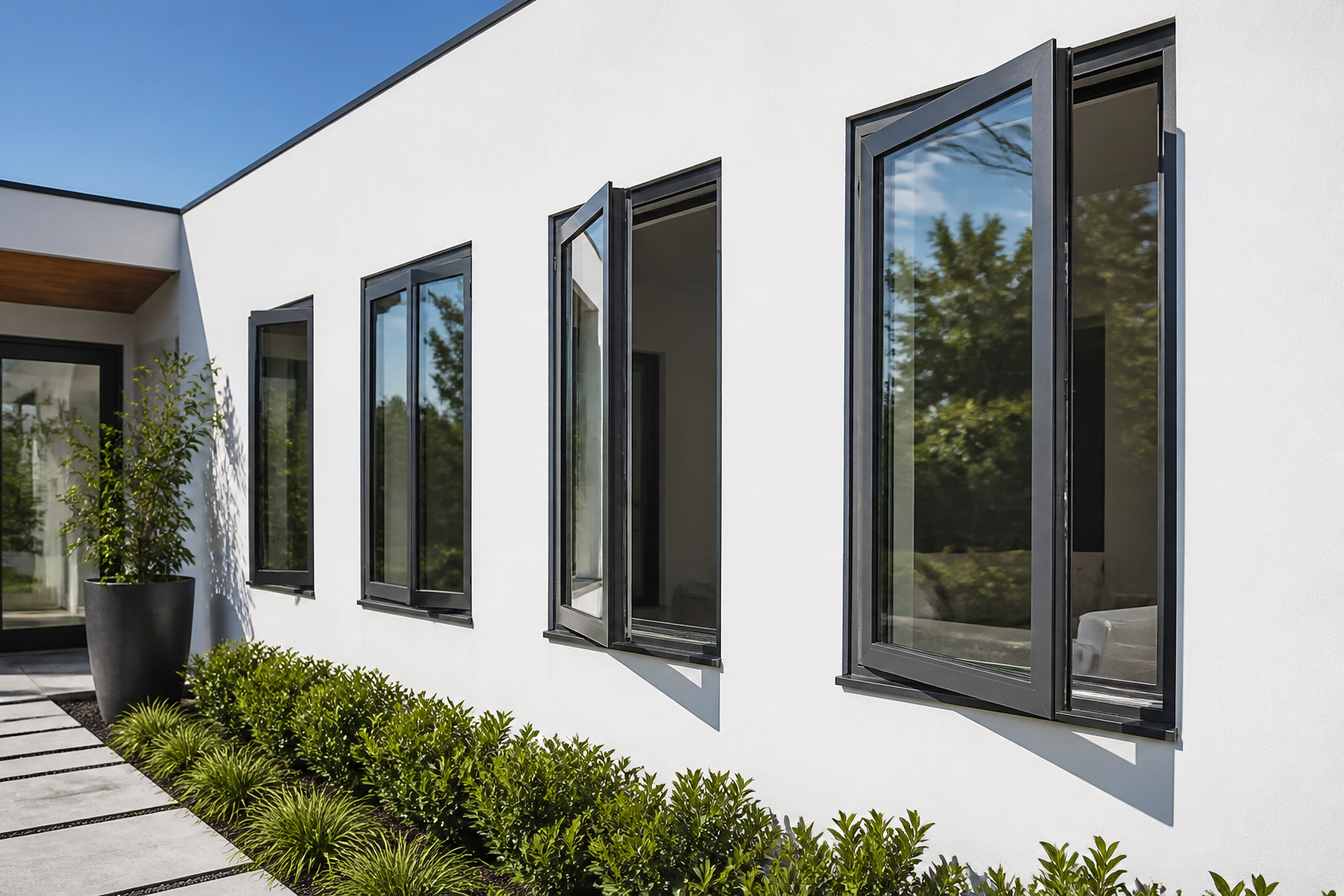

Finish choice on the VLX 80 usually follows the home’s architecture. Pure White and Anodized Silver read as bright and clean on Spanish-style homes in Woodland Hills, where white-on-stucco feels natural. Premium Black and Bronze are our most requested pairings for the modern farmhouse and contemporary builds popping up south of the Boulevard, where dark frames add contrast without heavy trim. Champagne lands somewhere between, a warm metallic that works well on both stucco and painted wood siding. Teak Wood is the pick for homeowners who want wood’s warm look but refuse the termite risk and repainting cycle that real wood brings in our climate.

Glass choice depends on the window’s job. Low-E is our default for any opening that gets direct sun in Woodland Hills; the added cost usually pays for itself in the first few summer cooling seasons. Tempered glass goes where code requires it or where safety is a concern. Laminated is the choice for bedroom and street-facing windows on noisy roads, and for any homeowner interested in extra impact resistance and break-in deterrence. Frosted works for privacy without giving up light.

Installation by Juniper Windows Woodland Hills in Woodland Hills

Windows fail in two ways: the product fails, or the install does. We control the second one completely. Each VLX 80 Casement Window we install in Woodland Hills goes through the same sequence: a pre-install inspection of the rough opening to catch framing, flashing, or water-damage issues before the new window goes in, then a level, plumb, and square set. The sash only seals correctly when the frame is square. If the opening is off level by even a fraction of an inch, the window will bind, the weather seal won’t seat fully, and the thermal performance numbers on the NFRC label become fiction.

We follow AAMA 2400/2410 installation standards, the recognized best practice for window installation in the industry. Every perimeter joint gets AAMA 812 low-expansion foam sealant, which fills gaps completely without bowing the frame the way high-expansion canned foam can. After install, we run a final water test and walk the job with you before cleanup. Here’s the part most homeowners don’t realize: a manufacturer’s warranty covers manufacturing defects. It does not cover a window that leaks because the installer skipped the flashing or sealed the perimeter with the wrong product. Improper installation can void the warranty. An authorized installation partner exists exactly so that your ViewLux window is in that first category, not the second. The smart money on a premium window always pays for a premium install, because the warranty only protects you if the work was done to spec.

Woodland Hills has its own considerations. Older homes on the hillsides often have rough openings that are no longer square after decades of minor seismic movement and dry-season settling. Our installers have seen every version of that and shim and set accordingly. Building codes in Los Angeles govern tempered glass near doors and low sills, and our installs meet those requirements without you having to chase down an inspector for advice.

Frequently Asked Questions – VLX 80 Casement Window

Get a Quote – VLX 80 Casement Window in Woodland Hills

If you’re pricing the VLX 80 for one window or a full Woodland Hills home, start with a free on-site measurement and a written line-item quote. We’ll confirm your sizes, discuss glass and finish options that fit your walls and your cooling bill, and give you a fixed price before any work begins. Call (831) 508-3441 to schedule your free estimate with Juniper Windows Woodland Hills.

Written by the team at Juniper Windows Woodland Hills, your authorized ViewLux installation partner serving Woodland Hills, CA.
